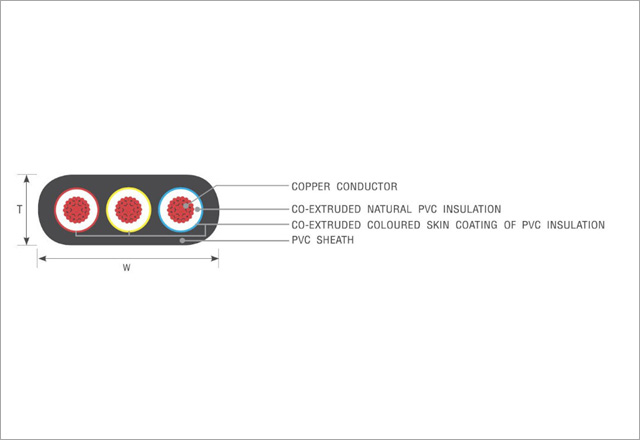

Core Flat Submersible Cable Products Range

3 Core Flat Cables are manufactured for critical space requirement, protection against indefinite immersion in water under specified conditions, protection against rain-water and against ingress of small solid foreign bodies.

3 Core Flat Cables are produced from best quality electrolytic copper, which is drawn, annealed on-line and bunched on automatic machines to ensure flexibility and uniform resistance. The conductors are insulated with a special grade of PVC on sophisticated co-extrusion lines. Outer sheath consists of highly abrasion resistant PVC compound impervious to grease, oil and water etc.

PVC Flexible Wires & Cables Products Range

• Conductors : The conductors are drawn from bright electrolytic grade copper, annealed and bunched together (multistanded) as per class 5 of IS 8130 : 2013
• Insulation: Bunched conductors are insulated with specially formulated in-house developed PVC compound having high insulation resistance value. The insulation process is carried out on modern high speed extrusion lines with a high degree of accuracy, thus ensuring consistency in performance.
• Sheathing : In case of multi core cable, the insulated cores are laid up to form the core assembly, Sheathing is provided with specially formulated PVC compound to facilitate stripping as also to withstand mechanical abrasion while in use.
• Quality Control : You are assured of the highest quality standards in every product. Stringent quality control tests are applied at every stage from raw material to finished goods stage so as to give you the best product, meeting relevant quality standards.
• PVC insulated Industrial Cables are manufactured as per IS 694 : 2010, in single core sizes from 0.5 sq. mm to 50 sq. mm and multi core sheathed cables in sizes 0.5 sq. mm to 4 sq. mm upto 5 cores. These cable sizes are ISI marked and are duly approved by FIA/TAC. The remaining sizes generally conform to IS 694 : 2010.
• cables/screened instrumentation cables are also available.

House Wires :–

House Wires Products Range

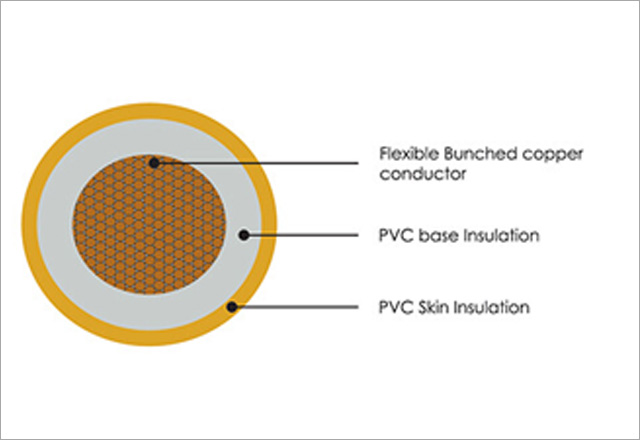

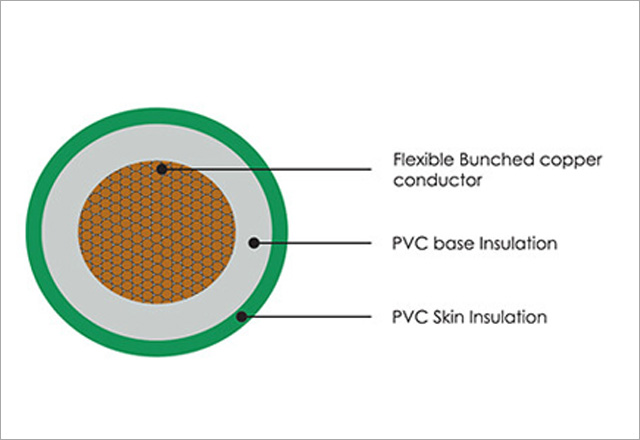

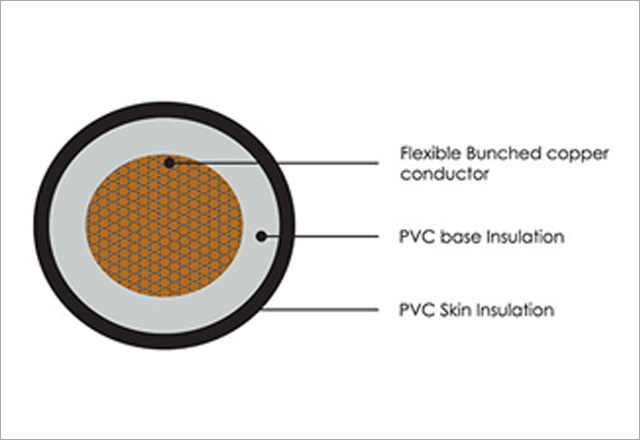

Single Core FR-LF Cables

Single core FR-LF wire is Eco & environment friendly to the environment & suitable for use where high flexibility is of Prime importance. This is also suitable for indoor and outdoor installation in industries, household appliances, power supply for refrigerators, air conditioners and building electrification.

Features –

• Flame Retardant
• Low Smoke
• Smooth & glossy surface with enhanced lubrication properties
• High Insulation Resistance
• High abrasion Resistance
• ROHS Complaint
